MaxTab Installation Instructions

maxtab INSTALLATION INSTRUCTIONS

VENTURE MAX INSTALLATION SYSTEM



MAXTAB® INSTALLATION SYSTEM is a glue free method which allows the installation of carpet tiles without using adhesive, creating a durable “floating” floor. The major advantages of this system include:

  • Quicker installation, decreased down time and odorless

  • Easier floor preparation and no mess

  • Ease of removal when changing or replacing your carpet tiles

  • Flexible installation and superior performance in all areas and environments

  • Can be installed below, on or above grade

MAXTAB® INSTALLATION SYSTEM works as easy as peel and stick!


CARPET TILEs

Prior to installation

Before installing the carpet tiles, your floor must be clean, smooth, leveled and be within the required temperature of 50°F to 90°F (10°C to 32°C). The carpet tiles can only be installed over a hard surface (such as plywood, concrete, hardwood or ceramic tile). No under padding should be used between your carpet tile and subfloor.

  1. ESTABLISH THE CENTER POINT OF YOUR ROOM

    In order to determine the center point of your room, snap chalk lines from opposite corners and from opposite walls. Use a straight edge when snapping the chalk line from opposite walls to ensure the lines form a 90o angle.


2. POSITION THE TILES

From the center point, and starting from one end of the wall, lay your tiles to the opposite side. You may need to shift your first row from your base wall to ensure proper fitting and avoid any short tile strips against each wall.


Select an installation method that is recommended for your product.


MONOLITHIC


BRICKS


QUARTER-TURN


ASHLAR

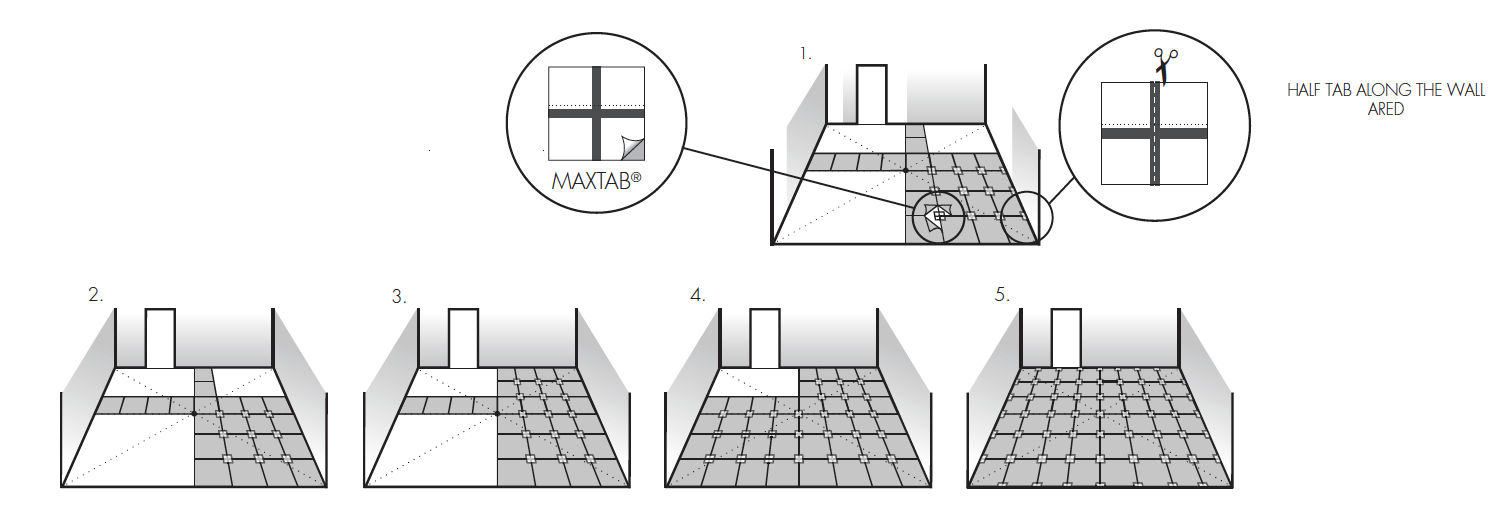

3. MAXTAB® PLACEMENT

After the tiles are positioned, start from one side of the wall and place the MAXTAB® (sticky side up) underneath the tiles as in the diagram below. For tiles next to a wall, you may cut the MAXTAB® in half.


CARPET PLANKS

Prior to installation

Before installing the carpet planks, your floor must be clean, smooth, leveled and be within the required temperature of 50°F to 90°F (10°C to 32°C). The carpet planks can only be installed over a hard surface (such as plywood, concrete, hardwood or ceramic tile). No under padding should be used between your carpet plank and subfloor.

1. ESTABLISH THE CORNER STARTING POINT OF YOUR ROOM

You must choose a corner which has a 90° angle, then select your installation method.


The tiles can be positioned: classic or herringbone.

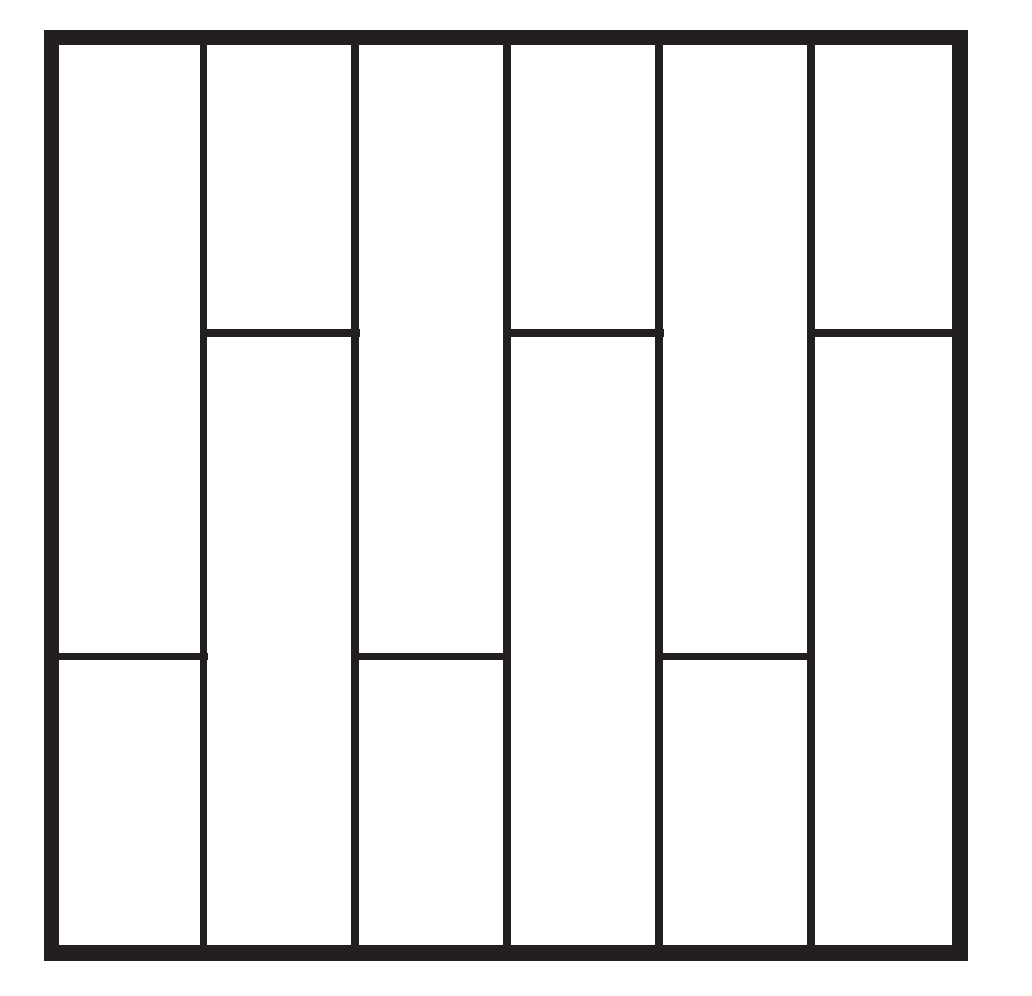

CLASSIC

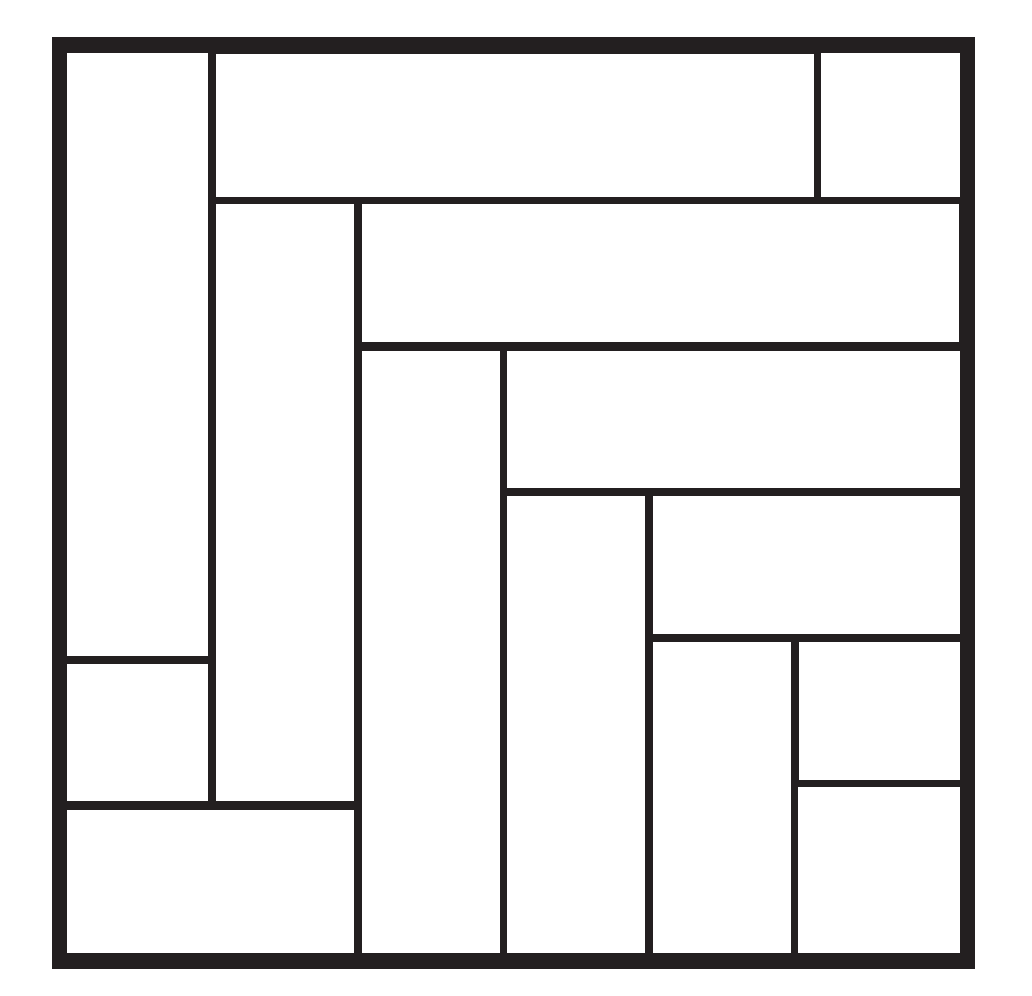

HERRINGBONE

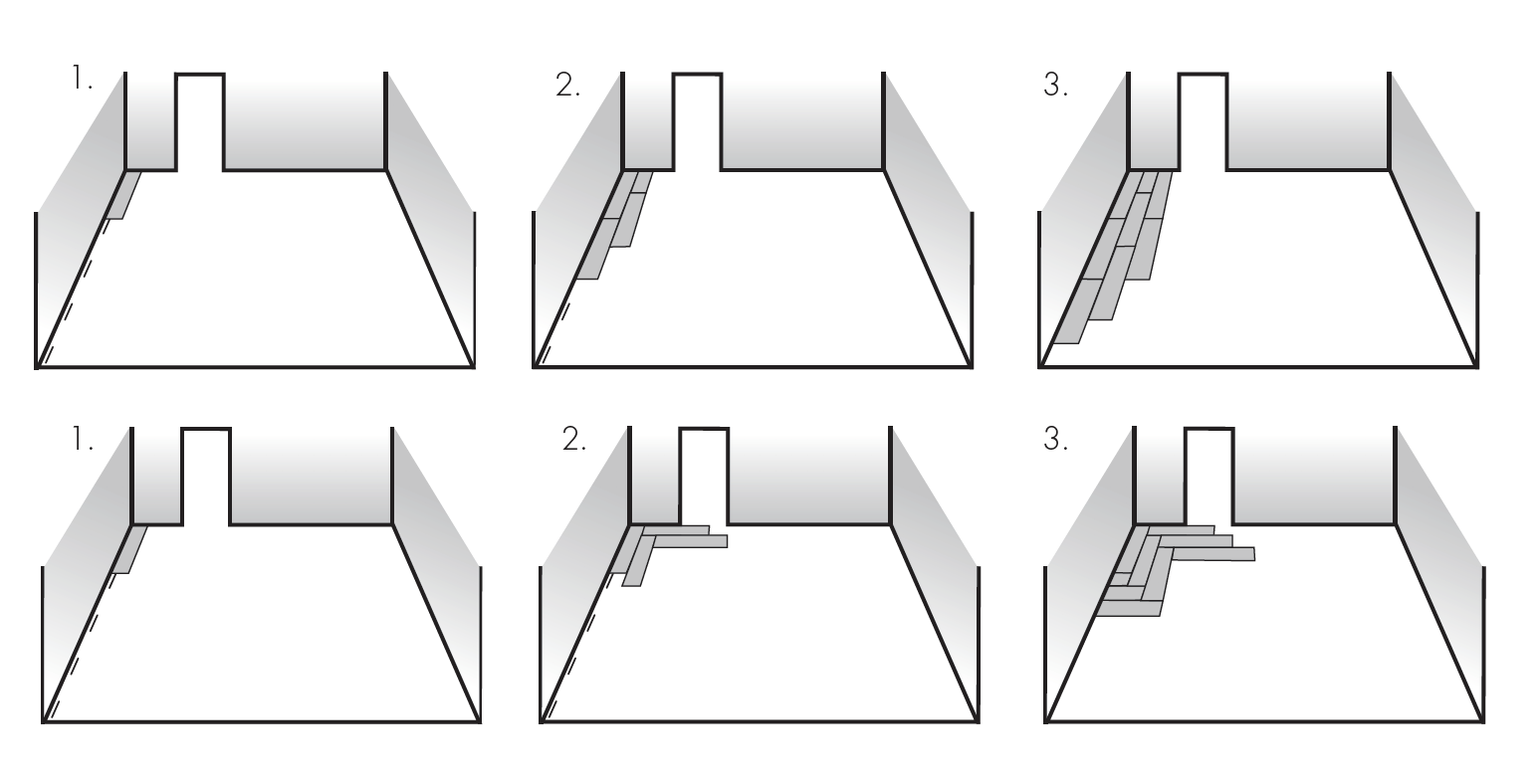

2. Position the planks

From your corner start point, lay the first tile along the wall. For a classic installation, lay the second tile after the first tile. For a herringbone installation, lay the second tile perpendicular to the opposite wall. You may need to shift or cut your first row from your base wall to ensure proper fitting and avoid any short tile strips against the opposing wall.


3. MAXTAB® PLACEMENT

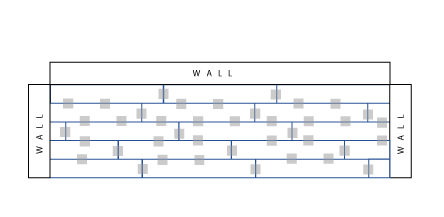

After the tiles are positioned, start from one side of the wall and place the MAXTAB® (sticky side up) underneath the tiles as in the diagram below. For tiles next to a wall, you may cut the MAXTAB® in half.

CLASSIC


HERRINGBONE
